ComfyUI Interface Overview
In this article, we will briefly introduce the basic user interface of ComfyUI, familiarizing you with the various parts of the ComfyUI interface.
The visual interface is currently the way most users utilize ComfyUI to call the ComfyUI Server to generate corresponding media resources. It provides a visual interface for users to operate and organize workflows, debug workflows, and create amazing works.
Typically, when you start the ComfyUI server, you will see an interface like this:
If you are an earlier user, you may have seen the previous menu interface like this:
Currently, the ComfyUI frontend is a separate project, released and maintained as an independent pip package. If you want to contribute, you can fork this repository and submit a pull request.
Localization Support
Currently, ComfyUI supports: English, Chinese, Russian, French, Japanese, and Korean.
If you need to switch the interface language to your preferred language, you can click the Settings gear icon and then select your desired language under Comfy
—> Locale
.
New Menu Interface
Workspace Areas

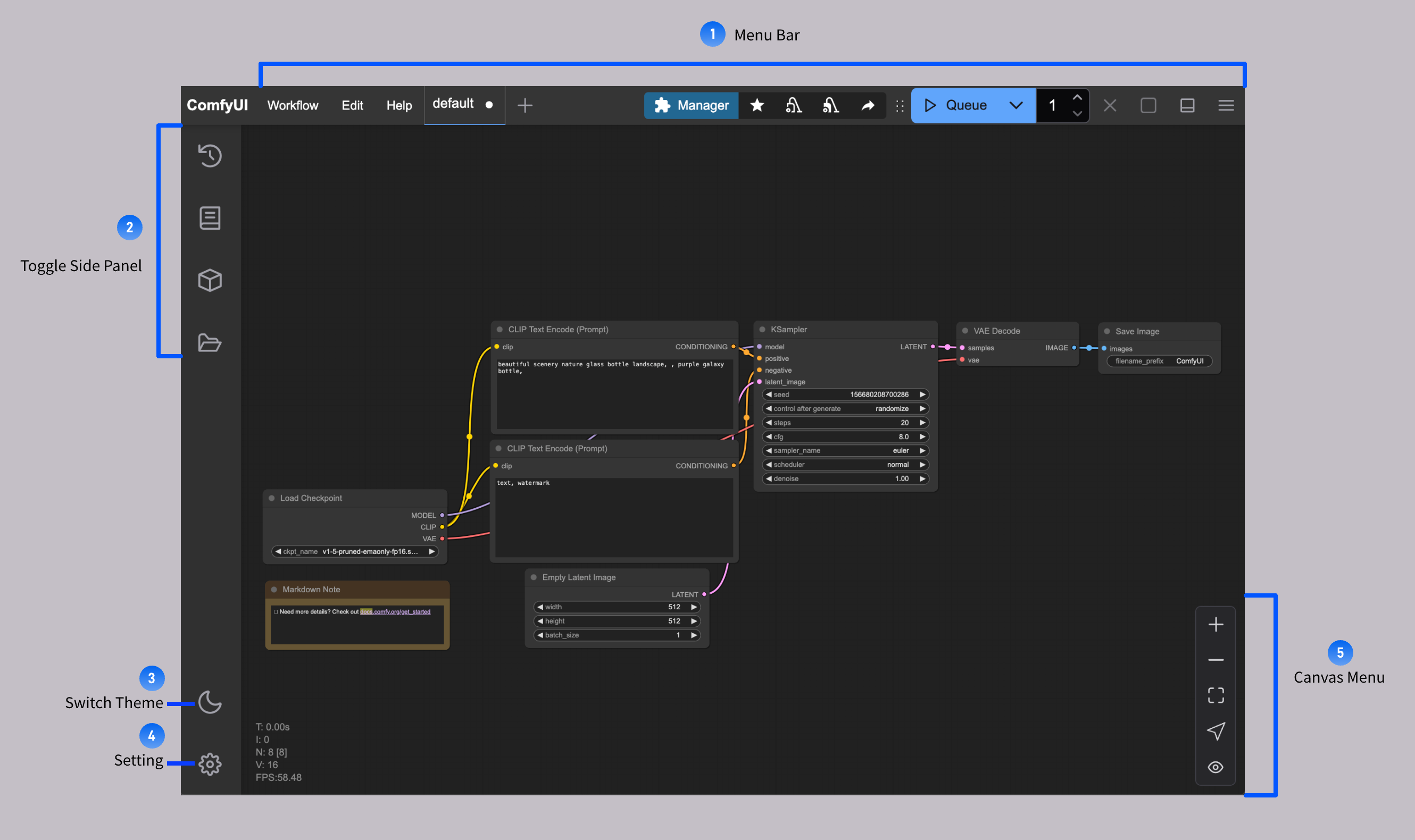

Below are the main interface areas of ComfyUI and a brief introduction to each part.
Currently, apart from the main workflow interface, the ComfyUI interface is mainly divided into the following parts:
- Menu Bar: Provides workflow, editing, help menus, workflow execution, ComfyUI Manager entry, etc.
- Sidebar Panel Switch Buttons: Used to switch between workflow history queue, node library, model library, local user workflow browsing, etc.
- Theme Switch Button: Quickly switch between ComfyUI’s default dark theme and light theme
- Settings: Click to open the settings button
- Canvas Menu: Provides zoom in, zoom out, and auto-fit operations for the ComfyUI canvas
Menu Bar Functions

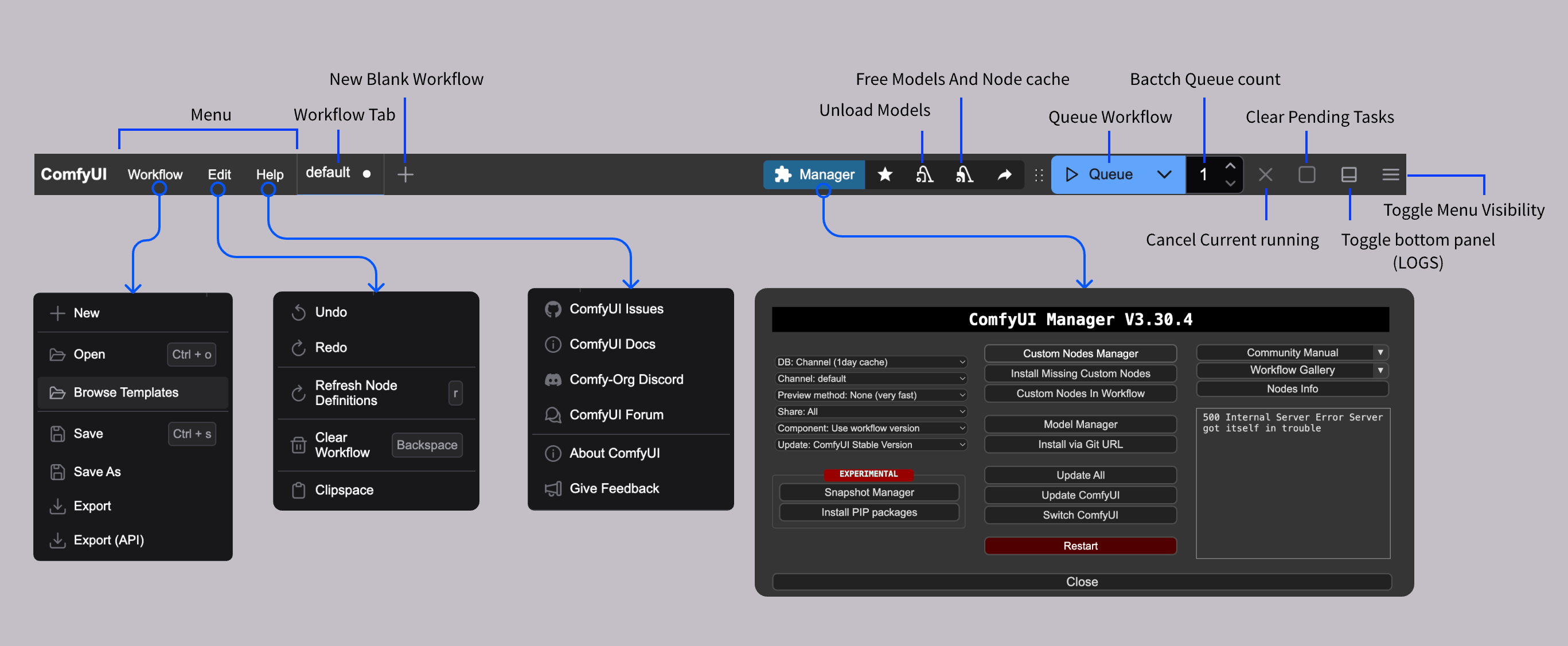

The image above shows the corresponding functions of the top menu bar, including common features, which we will explain in detail in the specific function usage section.
Sidebar Panel Buttons
In the current ComfyUI, we provide four side panels with the following functions:
- Workflow History Queue (Queue): All queue information for ComfyUI executing media content generation
- Node Library: All nodes in ComfyUI, including
Comfy Core
and your installed custom nodes, can be found here - Model Library: Models in your local
ComfyUI/models
directory can be found here - Local User Workflows (Workflows): Your locally saved workflows can be found here
Old Menu Version
Currently, ComfyUI enables the new interface by default. If you prefer to use the old interface, you can click the Settings gear icon and then set Use new menu
to disabled
under Comfy
—> Menu
to switch to the old menu version.
The old menu interface only supports English.

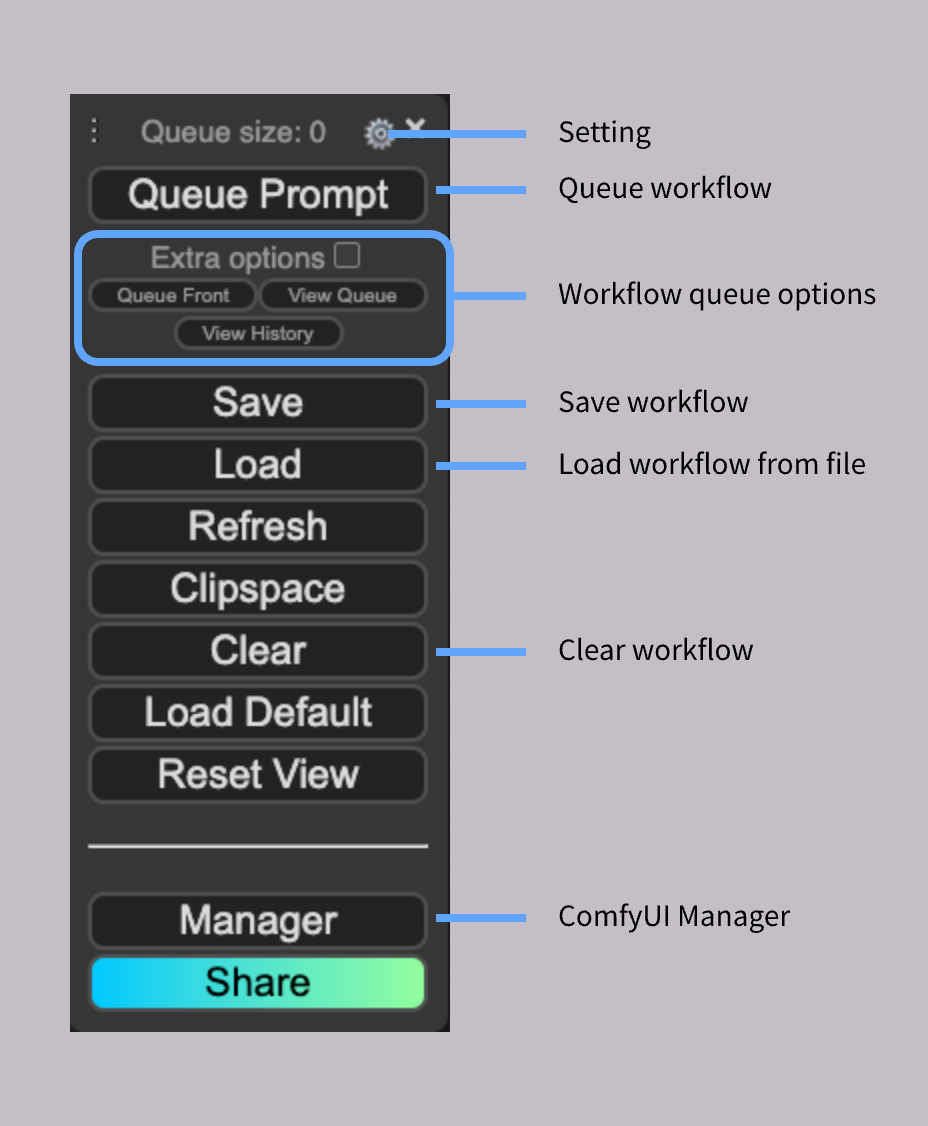

The function annotations for the old menu interface are explained below:
