ComfyUI Image Upscale Workflow
This guide explains the concept of image upscaling in AI drawing and demonstrates how to implement an image upscaling workflow in ComfyUI
What is Image Upscaling?
Image Upscaling is the process of converting low-resolution images to high-resolution using algorithms. Unlike traditional interpolation methods, AI upscaling models (like ESRGAN) can intelligently reconstruct details while maintaining image quality.
For instance, the default SD1.5 model often struggles with large-size image generation. To achieve high-resolution results,we typically generate smaller images first and then use upscaling techniques.
This article covers one of many upscaling methods in ComfyUI. In this tutorial, we’ll guide you through:
- Downloading and installing upscaling models
- Performing basic image upscaling
- Combining text-to-image workflows with upscaling
Upscaling Workflow
Model Installation
Required ESRGAN models download:
Visit OpenModelDB

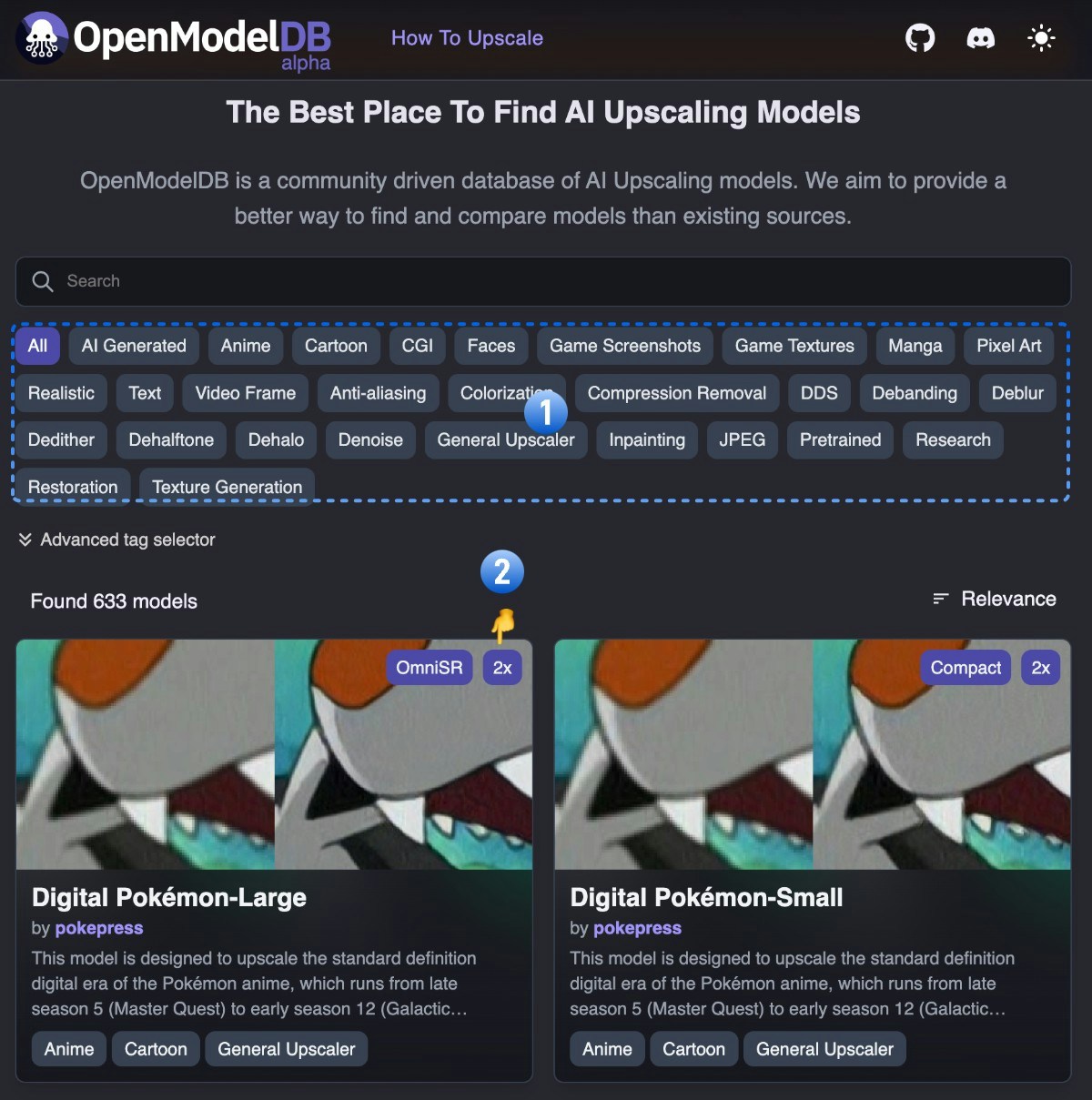

Visit OpenModelDB to search and download upscaling models (e.g., RealESRGAN)
As shown:
- Filter models by image type using the category selector
- The model’s magnification factor is indicated in the top-right corner (e.g., 2x in the screenshot)

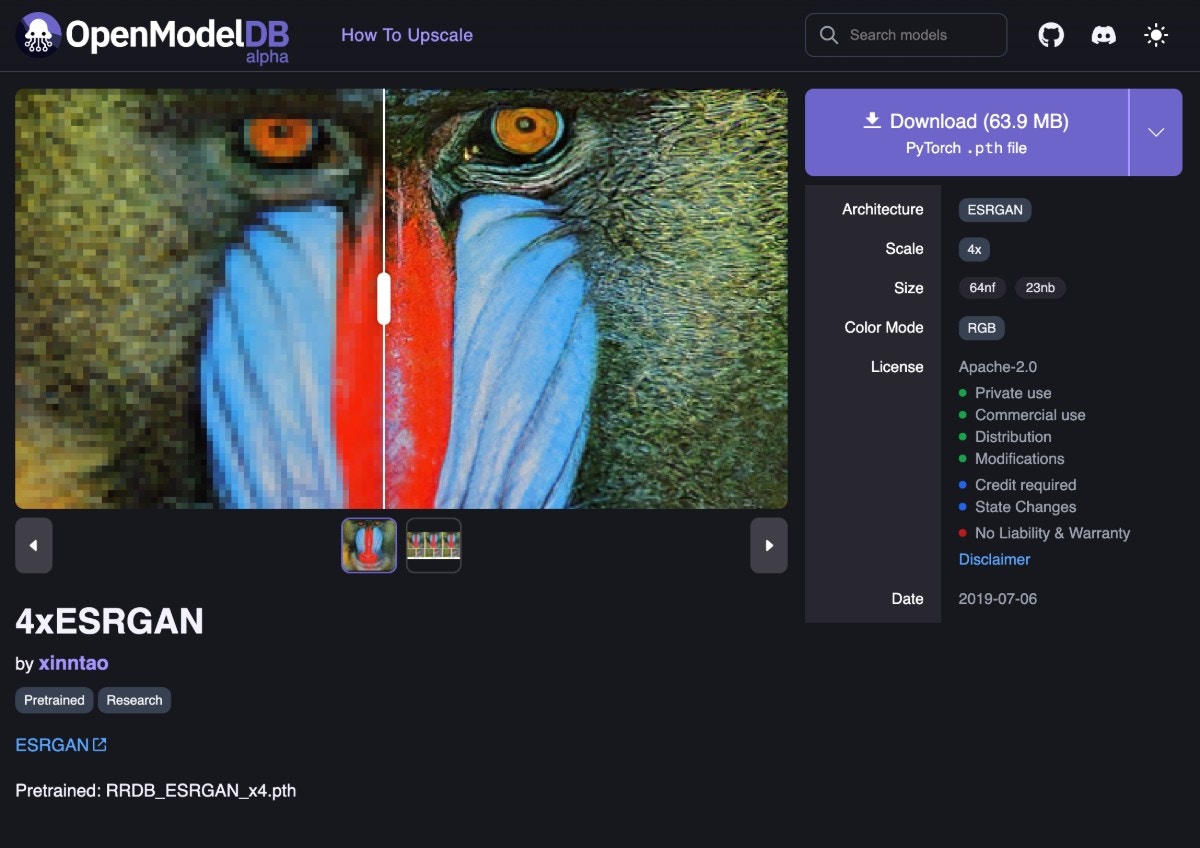

We’ll use the 4x-ESRGAN model for this tutorial. Click the Download
button on the model detail page.
Save Model Files in Directory
Save the model file (.pth) in ComfyUI/models/upscale_models
directory
Workflow and Assets
Download and drag the following image into ComfyUI to load the basic upscaling workflow:
Images containing workflow JSON in their metadata can be directly dragged into ComfyUI or loaded using the menu Workflows
-> Open (ctrl+o)
.
Use this image in smaller size as input:
Complete the Workflow Step by Step

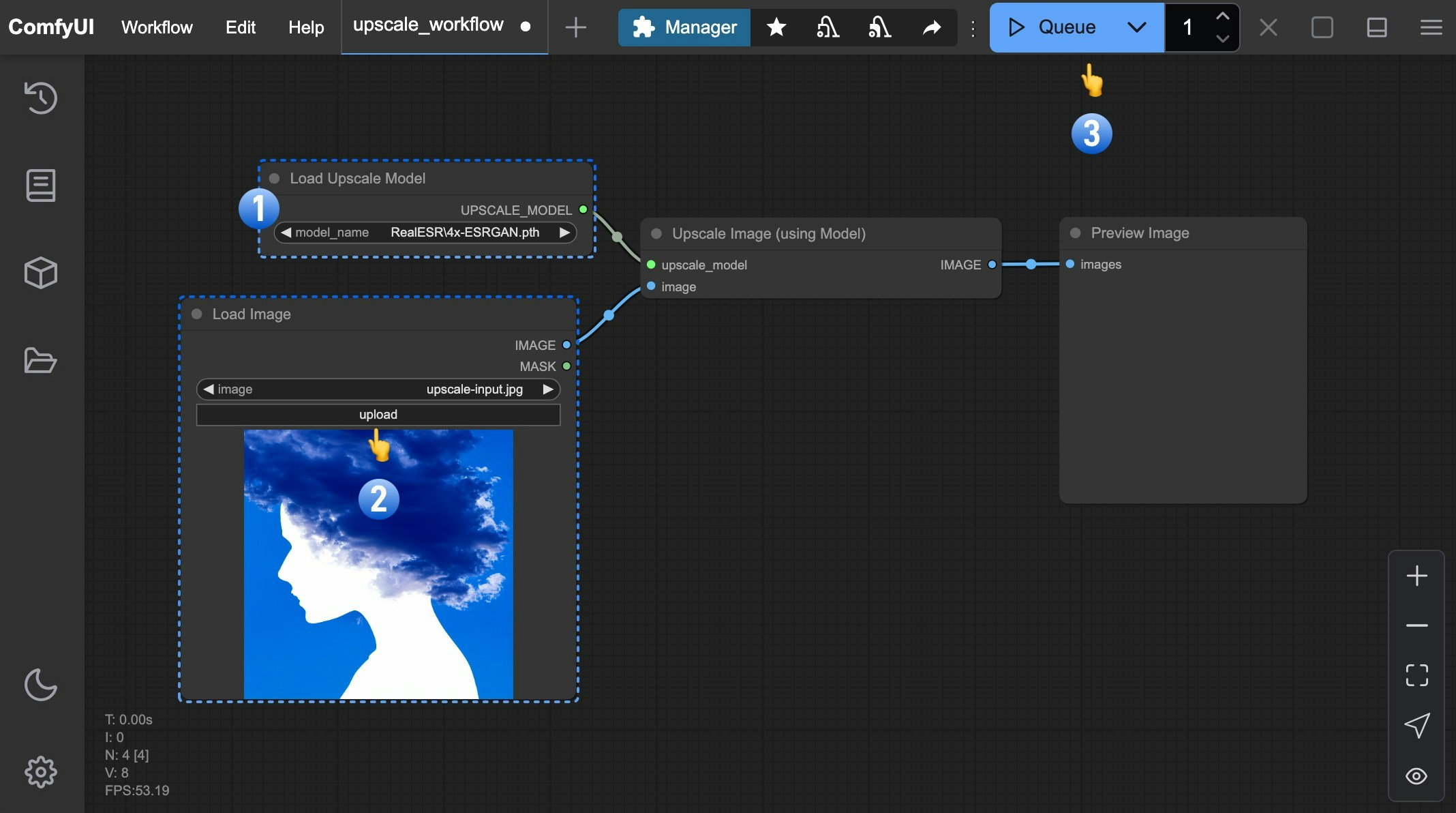

Follow the steps in the diagram below to ensure the workflow runs correctly.
- Ensure
Load Upscale Model
loads4x-ESRGAN.pth
- Upload the input image to the
Load Image
node - Click the
Queue
button, or use the shortcutCtrl(cmd) + Enter
to generate the image
The core components are the Load Upscale Model
and Upscale Image (Using Model)
nodes, which receive an image input and upscale it using the selected model.
Text-to-Image Combined Workflow
After mastering basic upscaling, we can combine it with the text-to-image workflow. For text-to-image basics, refer to the text-to-image tutorial.

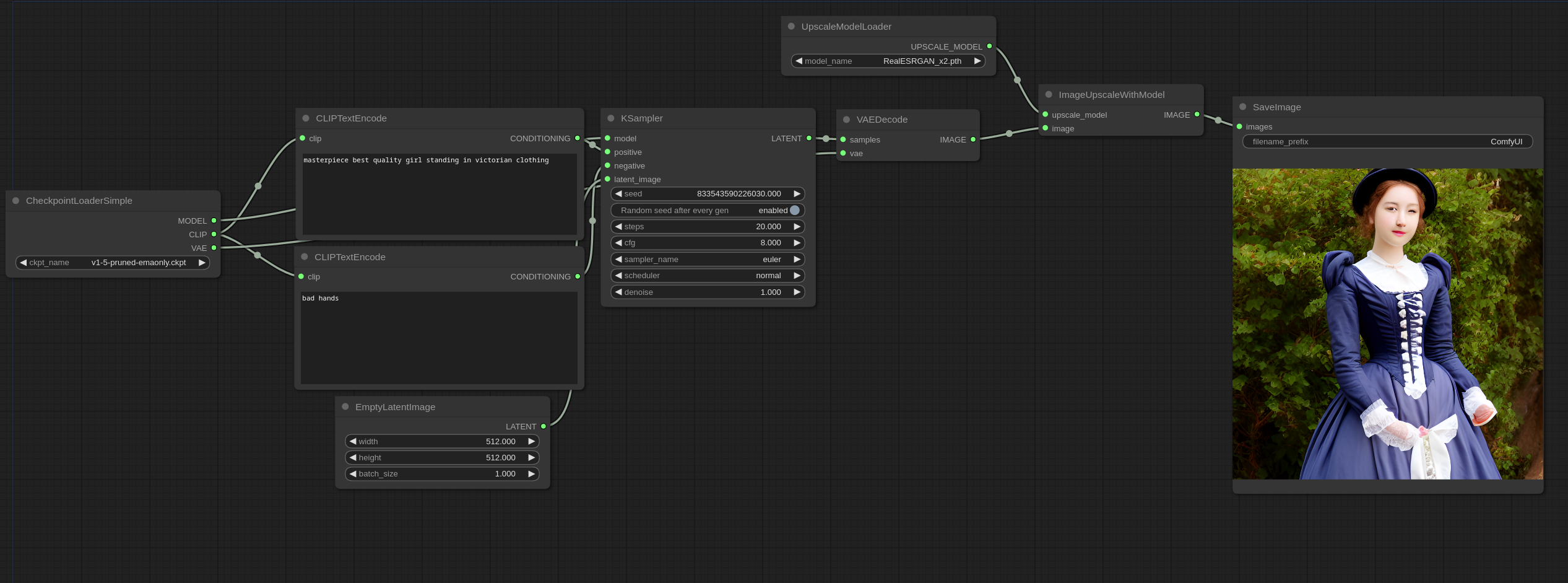

Download and drag this image into ComfyUI to load the combined workflow:
This workflow connects the text-to-image output image directly to the upscaling nodes for final processing.
Additional Tips
Model characteristics:
- RealESRGAN: General-purpose upscaling
- BSRGAN: Excels with text and sharp edges
- SwinIR: Preserves natural textures, ideal for landscapes
- Chained Upscaling: Combine multiple upscale nodes (e.g., 2x → 4x) for ultra-high magnification
- Hybrid Workflow: Connect upscale nodes after generation for “generate+enhance” pipelines
- Comparative Testing: Different models perform better on specific image types - test multiple options
