Hunyuan3D 2.0 Introduction

Hunyuan 3D 2 Hunyuan 3D 2 Hunyuan3D 2.0 is an open-source 3D asset generation model released by Tencent, capable of generating high-fidelity 3D models with high-resolution texture maps through text or images. Hunyuan3D 2.0 adopts a two-stage generation approach, first generating a geometry model without textures, then synthesizing high-resolution texture maps. This effectively separates the complexity of shape and texture generation. Below are the two core components of Hunyuan3D 2.0:
  1. Geometry Generation Model (Hunyuan3D-DiT): Based on a flow diffusion Transformer architecture, it generates untextured geometric models that precisely match input conditions.
  2. Texture Generation Model (Hunyuan3D-Paint): Combines geometric conditions and multi-view diffusion techniques to add high-resolution textures to models, supporting PBR materials.
Key Advantages
  • High-Precision Generation: Sharp geometric structures, rich texture colors, support for PBR material generation, achieving near-realistic lighting effects.
  • Diverse Usage Methods: Provides code calls, Blender plugins, Gradio applications, and online experience through the official website, suitable for different user needs.
  • Lightweight and Compatibility: The Hunyuan3D-2mini model requires only 5GB VRAM, the standard version needs 6GB VRAM for shape generation, and the complete process (shape + texture) requires only 12GB VRAM.
Recently (March 18, 2025), Hunyuan3D 2.0 also introduced a multi-view shape generation model (Hunyuan3D-2mv), which supports generating more detailed geometric structures from inputs at different angles. This example includes three workflows:
  • Using Hunyuan3D-2mv with multiple view inputs to generate 3D models
  • Using Hunyuan3D-2mv-turbo with multiple view inputs to generate 3D models
  • Using Hunyuan3D-2 with a single view input to generate 3D models
ComfyUI now natively supports Hunyuan3D-2mv, but does not yet support texture and material generation. Please make sure you have updated to the latest version of ComfyUI before starting.The workflow example PNG images in this tutorial contain workflow JSON in their metadata:
  • You can drag them directly into ComfyUI
  • Or use the menu Workflows -> Open (ctrl+o)
This will load the corresponding workflow and prompt you to download the required models. The generated .glb format models will be output to the ComfyUI/output/mesh folder.

​
ComfyUI Hunyuan3D-2mv Workflow Example

In the Hunyuan3D-2mv workflow, we’ll use multi-view images to generate a 3D model. Note that multiple view images are not mandatory in this workflow - you can use only the front view image to generate a 3D model.
If you find missing nodes when loading the workflow file below, it may be due to the following situations:
  1. You are not using the latest Development (Nightly) version of ComfyUI.
  2. You are using the Stable (Release) version or Desktop version of ComfyUI (which does not include the latest feature updates).
  3. You are using the latest Commit version of ComfyUI, but some nodes failed to import during startup.
Please make sure you have successfully updated ComfyUI to the latest Development (Nightly) version. See: How to Update ComfyUI section to learn how to update ComfyUI.

​
1. Workflow

Please download the images below and drag into ComfyUI to load the workflow. Hunyuan3D-2mv workflow Download the images below we will use them as input images.
input imageinput imageinput image
In this example, the input images have already been preprocessed to remove excess background. In actual use, you can use custom nodes like ComfyUI_essentials to automatically remove excess background.

​
2. Manual Model Installation

Download the model below and save it to the corresponding ComfyUI folder
  • hunyuan3d-dit-v2-mv: model.fp16.safetensors - after downloading, you can rename it to hunyuan3d-dit-v2-mv.safetensors
ComfyUI/
├── models/
│   ├── checkpoints/
│   │   └── hunyuan3d-dit-v2-mv.safetensors  // renamed file

​
3. Steps to Run the Workflow

ComfyUI hunyuan3d_2mv
  1. Ensure that the Image Only Checkpoint Loader(img2vid model) has loaded our downloaded and renamed hunyuan3d-dit-v2-mv.safetensors model
  2. Load the corresponding view images in each of the Load Image nodes
  3. Click the Queue button, or use the shortcut Ctrl(cmd) + Enter to run the workflow
If you need to add more views, make sure to load other view images in the Hunyuan3Dv2ConditioningMultiView node, and ensure that you load the corresponding view images in the Load Image nodes.

​
Hunyuan3D-2mv-turbo Workflow

In the Hunyuan3D-2mv-turbo workflow, we’ll use the Hunyuan3D-2mv-turbo model to generate 3D models. This model is a step distillation version of Hunyuan3D-2mv, allowing for faster 3D model generation. In this version of the workflow, we set cfg to 1.0 and add a flux guidance node to control the distilled cfg generation.

​
1. Workflow

Please download the images below and drag into ComfyUI to load the workflow. Hunyuan3D-2mv-turbo workflow Download the images below we will use them as input images.
input imageinput image

​
2. Manual Model Installation

Download the model below and save it to the corresponding ComfyUI folder
  • hunyuan3d-dit-v2-mv-turbo: model.fp16.safetensors - after downloading, you can rename it to hunyuan3d-dit-v2-mv-turbo.safetensors
ComfyUI/
├── models/
│   ├── checkpoints/
│   │   └── hunyuan3d-dit-v2-mv-turbo.safetensors  // renamed file

​
3. Steps to Run the Workflow

ComfyUI hunyuan3d_2mv_turbo
  1. Ensure that the Image Only Checkpoint Loader(img2vid model) node has loaded our renamed hunyuan3d-dit-v2-mv-turbo.safetensors model
  2. Load the corresponding view images in each of the Load Image nodes
  3. Click the Queue button, or use the shortcut Ctrl(cmd) + Enter to run the workflow

​
Hunyuan3D-2 Single View Workflow

In the Hunyuan3D-2 workflow, we’ll use the Hunyuan3D-2 model to generate 3D models. This model is not a multi-view model. In this workflow, we use the Hunyuan3Dv2Conditioning node instead of the Hunyuan3Dv2ConditioningMultiView node.

​
1. Workflow

Please download the image below and drag it into ComfyUI to load the workflow. Hunyuan3D-2 workflow Download the image below we will use it as input image. ComfyUI Hunyuan 3D 2 workflow

​
2. Manual Model Installation

Download the model below and save it to the corresponding ComfyUI folder
  • hunyuan3d-dit-v2-0: model.fp16.safetensors - after downloading, you can rename it to hunyuan3d-dit-v2.safetensors
ComfyUI/
├── models/
│   ├── checkpoints/
│   │   └── hunyuan3d-dit-v2.safetensors  // renamed file

​

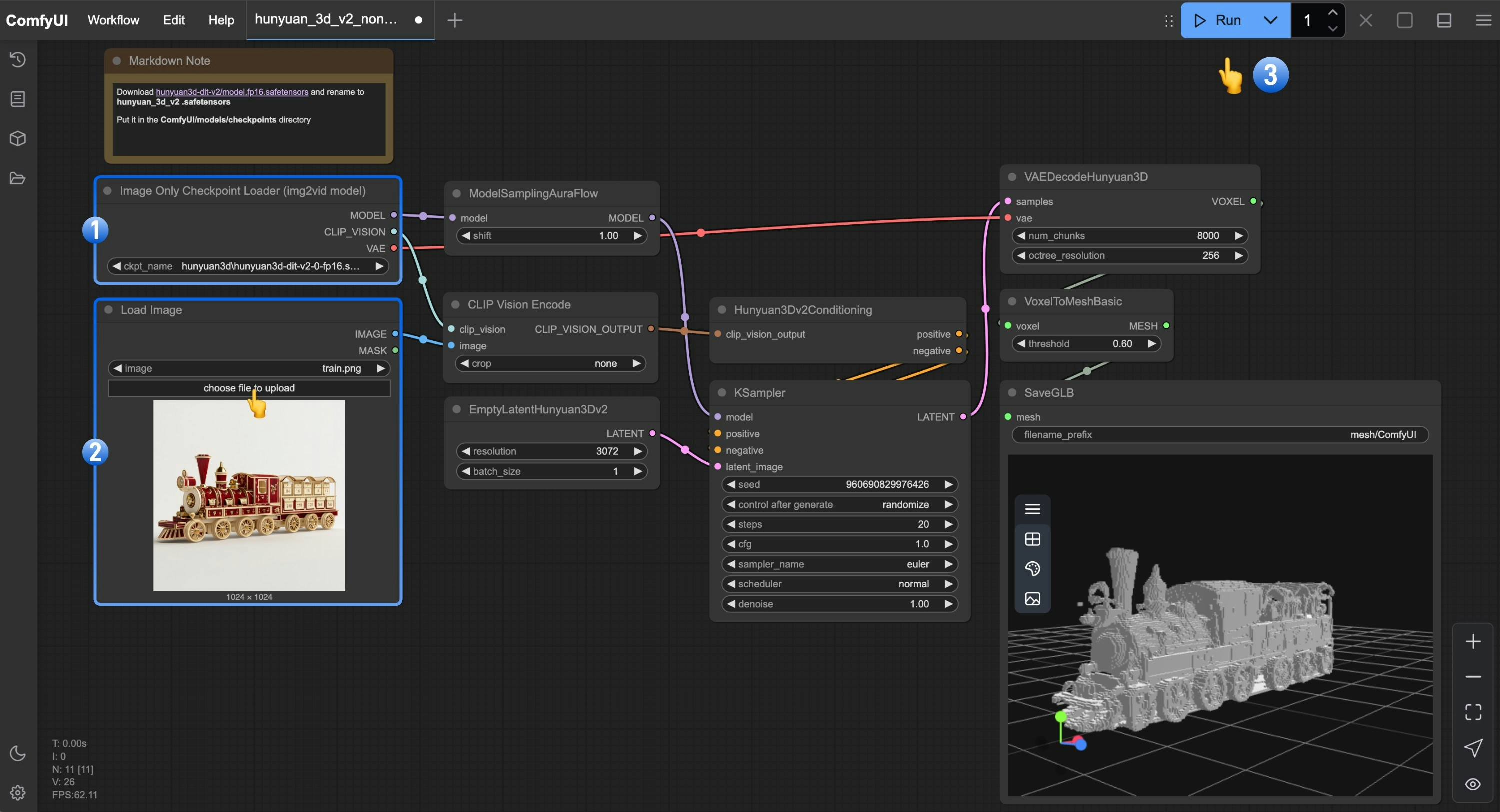

3. Steps to Run the Workflow

ComfyUI hunyuan3d_2
  1. Ensure that the Image Only Checkpoint Loader(img2vid model) node has loaded our renamed hunyuan3d-dit-v2.safetensors model
  2. Load the image in the Load Image node
  3. Click the Queue button, or use the shortcut Ctrl(cmd) + Enter to run the workflow

​
Community Resources

Below are ComfyUI community resources related to Hunyuan3D-2

​
Hunyuan3D 2.0 Open-Source Model Series

Currently, Hunyuan3D 2.0 has open-sourced multiple models covering the complete 3D generation process. You can visit Hunyuan3D-2 for more information. Hunyuan3D-2mini Series
ModelDescriptionDateParametersHuggingface
Hunyuan3D-DiT-v2-miniMini Image to Shape Model2025-03-180.6BVisit
Hunyuan3D-2mv Series
ModelDescriptionDateParametersHuggingface
Hunyuan3D-DiT-v2-mv-FastGuidance Distillation Version, can halve DIT inference time2025-03-181.1BVisit
Hunyuan3D-DiT-v2-mvMulti-view Image to Shape Model, suitable for 3D creation requiring multiple angles to understand the scene2025-03-181.1BVisit
Hunyuan3D-2 Series
ModelDescriptionDateParametersHuggingface
Hunyuan3D-DiT-v2-0-FastGuidance Distillation Model2025-02-031.1BVisit
Hunyuan3D-DiT-v2-0Image to Shape Model2025-01-211.1BVisit
Hunyuan3D-Paint-v2-0Texture Generation Model2025-01-211.3BVisit
Hunyuan3D-Delight-v2-0Image Delight Model2025-01-211.3BVisit
