In this tutorial, you build a text-to-image Workflow on an empty Canvas and run it. You type a description of a picture, and ComfyUI generates a 512 × 512 image from it with the Stable Diffusion 1.5 model. You add and connect every Node yourself. Each step says what the Node does and how to tell the step worked. This tutorial uses ComfyUI on your own computer: Comfy Desktop, ComfyUI Portable, or a manual install. Install ComfyUI and open it before you start.
To use ComfyUI in your browser with nothing to install, open the Z-Image-Turbo text-to-image template in Comfy Cloud.

Learn the parts of a Workflow

A Workflow is a set of Nodes joined by links. Each Node does one job:
  • Inputs are the dots on the left side of a Node. They receive data from other Nodes.
  • Outputs are the dots on the right side of a Node. They send data to other Nodes.
  • Widgets are the settings inside a Node, such as a text box, a number, or a list.
  • Links are the lines that carry data from an output to an input of the same type, such as from the CLIP output to a clip input.
The Workflow in this tutorial has seven Nodes of six types. The last column is where each Node sits in the Add Node menu, which Add a Node explains.

Download the model

The Load Checkpoint Node needs a model file. This tutorial uses v1-5-pruned-emaonly-fp16.safetensors. Hugging Face file page for v1-5-pruned-emaonly-fp16.safetensors with the download link highlighted

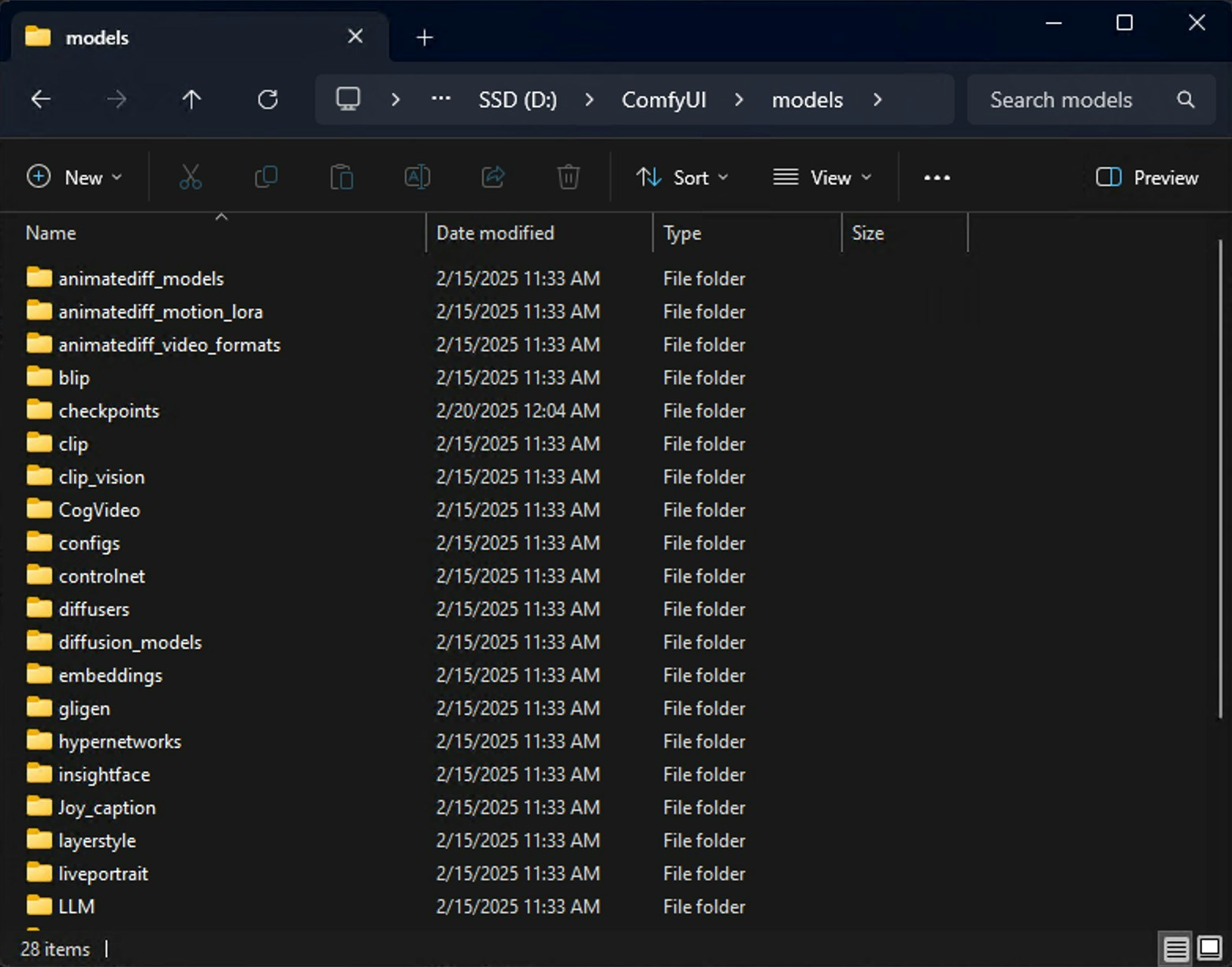

Put the model in the checkpoints folder

ComfyUI lists a checkpoint only when the file is in a checkpoints folder that ComfyUI reads. Move the file you downloaded into the folder for your install.
By default, every Comfy Desktop instance reads the shared models folders. Comfy Desktop saves model downloads in the shared models folder marked Downloads.
  1. In the Comfy Desktop title bar, click Menu, and then select Desktop Settings.
  2. Select the Storage tab.
  3. Under Shared Models, click the folder path marked Downloads. The folder opens in your file manager.
  4. Move v1-5-pruned-emaonly-fp16.safetensors into the checkpoints folder inside it. If there’s no checkpoints folder, create one.
If ComfyUI is already open, press R so it reads the model folders again.

Open a blank Workflow

The Canvas is the large area where you place Nodes. If it already shows a Workflow, open an empty one:
  1. At the top of the Left sidebar, click the ComfyUI logo (Menu).
  2. Select New.
ComfyUI Menu open below the ComfyUI logo at the top of the Left sidebar, with New at the top of the list above File, Edit, View, Theme, and the Nodes 2.0 switch The Canvas is now empty. Empty Canvas with the ComfyUI logo in the Left sidebar and the Top bar showing an Unsaved Workflow tab
In the Top bar, the plus (+) button next to your open Workflow tabs also opens a new blank Workflow.Plus button next to the Unsaved Workflow tab in the Top bar, with its tooltip shown

Add a Node

There are three ways to add a Node. Later steps name the way to use.

Use the Add Node menu

  1. Right-click an empty spot on the Canvas. A menu opens.
  2. Select Add Node, and then select each category in the Node’s Add Node path. The Node table lists the path for each Node in this tutorial.
  3. Select the Node. It appears where you right-clicked.
Canvas right-click menu open at Add Node > model > loaders, with Load Checkpoint highlighted in the list of loader Nodes

Search the Node Library

  1. Press N, or click Nodes in the Left sidebar. The Node Library opens.
  2. If the Node Library shows more than one tab, select All nodes.
  3. Type the Node name in the Search Nodes… box.
  4. Click the Node in the results, and then click the Canvas where you want it. The Node appears there.
Node Library open in the Left sidebar with load check typed in the search box, Load Checkpoint highlighted under model > loaders, and a preview of the Node with its ckpt_name input and MODEL, CLIP, and VAE outputs Dragging a link to empty Canvas adds a Node and connects it in one move.
  1. Drag from an output dot on a Node you already placed.
  2. Release over an empty spot on the Canvas. The Node search box opens there by default.
  3. Type the Node name, and then select the Node. ComfyUI adds the Node and connects it to the output you dragged from.
Load Checkpoint Node with its MODEL output linked to the model input on a new KSampler Node, and the Node search box open on the Canvas with KSampler typed in it To open a menu instead of the search box, hold Shift as you release.

Connect two Nodes

A link carries data from an output on one Node to an input on another Node.
  1. Drag from an output dot on one Node.
  2. Release over an input dot on another Node. A link appears between the two dots.
These rules apply to every link:
  • One output can feed several inputs.
  • An input takes one link. A new link to an input replaces its old link.
  • A link joins an output and an input of the same type. ComfyUI doesn’t draw a link between different types.

Add the Load Checkpoint Node

The Load Checkpoint Node loads the model file.
  1. Add a Load Checkpoint Node with the Add Node menu: model > loaders > Load Checkpoint.
  2. In the Node, click the ckpt_name widget, and then select v1-5-pruned-emaonly-fp16.safetensors.
The Node shows three outputs on its right side: MODEL, CLIP, and VAE. Load Checkpoint Node with MODEL, CLIP, and VAE outputs and v1-5-pruned-emaonly selected in the ckpt_name widget If the ckpt_name list doesn’t show the file, see The model isn’t in the checkpoint list.

Add the KSampler Node

The KSampler Node does the generation. It needs four links: the model, both prompts, and the blank starting image.
  1. Add a KSampler Node with the Node Library: search for KSampler.
  2. Connect the MODEL output on Load Checkpoint to the model input on KSampler.
Node Library with KSampler typed in the search box and KSampler highlighted under model > sampling, a preview of its inputs and outputs, and the KSampler Node placed on the Canvas below Load Checkpoint You draw the other three links in the next two sections. Leave the KSampler widgets at their default values. For example, steps is 20 and cfg is 8.0.

Add the prompt Nodes

Prompts describe the image. The positive prompt says what you want to see. The negative prompt says what you don’t want.
  1. Add a CLIP Text Encode (Prompt) Node with the Add Node menu (model > conditioning) or the Node Library.
  2. Click its text box and type your positive prompt, for example beautiful scenery nature glass bottle landscape, purple galaxy bottle.
  3. Right-click the Node, and then select Duplicate. A second CLIP Text Encode (Prompt) Node appears.
  4. Click the second Node’s text box and type your negative prompt, for example text, watermark.
Node Library with CLIP Te typed in the search box and CLIP Text Encode (Prompt) highlighted under model > conditioning, next to two CLIP Text Encode (Prompt) Nodes on the Canvas, one with the galaxy bottle prompt and one with text, watermark Connect the prompts:
  1. Connect the CLIP output on Load Checkpoint to the clip input on each CLIP Text Encode (Prompt) Node. Both prompt Nodes share the one CLIP output.
  2. Connect the CONDITIONING output on the positive prompt Node to the positive input on KSampler.
  3. Connect the CONDITIONING output on the negative prompt Node to the negative input on KSampler.

Set the image size

The Empty Latent Image Node sets the image size. Its width and height start at 1024. This Workflow uses 512, the size in the example Workflow in Load a Workflow from an image.
  1. Add an Empty Latent Image Node with the Add Node menu: model > latent > Empty Latent Image.
  2. Set width to 512.
  3. Set height to 512.
  4. Leave batch_size at 1.
  5. Connect its LATENT output to the latent_image input on KSampler.
Empty Latent Image Node with width set to 512, height set to 512, batch_size set to 1, and its LATENT output All four KSampler inputs now have links. Load Checkpoint, two CLIP Text Encode (Prompt) Nodes, and Empty Latent Image linked to the model, positive, negative, and latent_image inputs of KSampler

Decode and save the image

KSampler outputs a latent, not an image. VAE Decode converts it to an image, and Save Image stores it.
  1. Add a VAE Decode Node with the Node Library: search for VAE Decode.
  2. Connect the LATENT output on KSampler to the samples input on VAE Decode.
  3. Connect the VAE output on Load Checkpoint to the vae input on VAE Decode.
  4. Add a Save Image Node by dragging a link to empty Canvas: drag from the IMAGE output on VAE Decode, release over empty Canvas, and select Save Image. Its images input is linked to IMAGE.
Node Library with vae typed in the search box and VAE Decode highlighted under model > latent, a preview of its samples and vae inputs and IMAGE output, and the VAE Decode Node placed on the Canvas VAE Decode Node with its samples input linked from the KSampler LATENT output and its vae input linked from the Load Checkpoint VAE output Your Workflow has seven Nodes and nine links. Finished text-to-image Workflow: Load Checkpoint, two CLIP Text Encode (Prompt) Nodes, Empty Latent Image, KSampler, VAE Decode, and Save Image joined by nine links, with a 512 × 512 galaxy bottle image shown in the Save Image Node

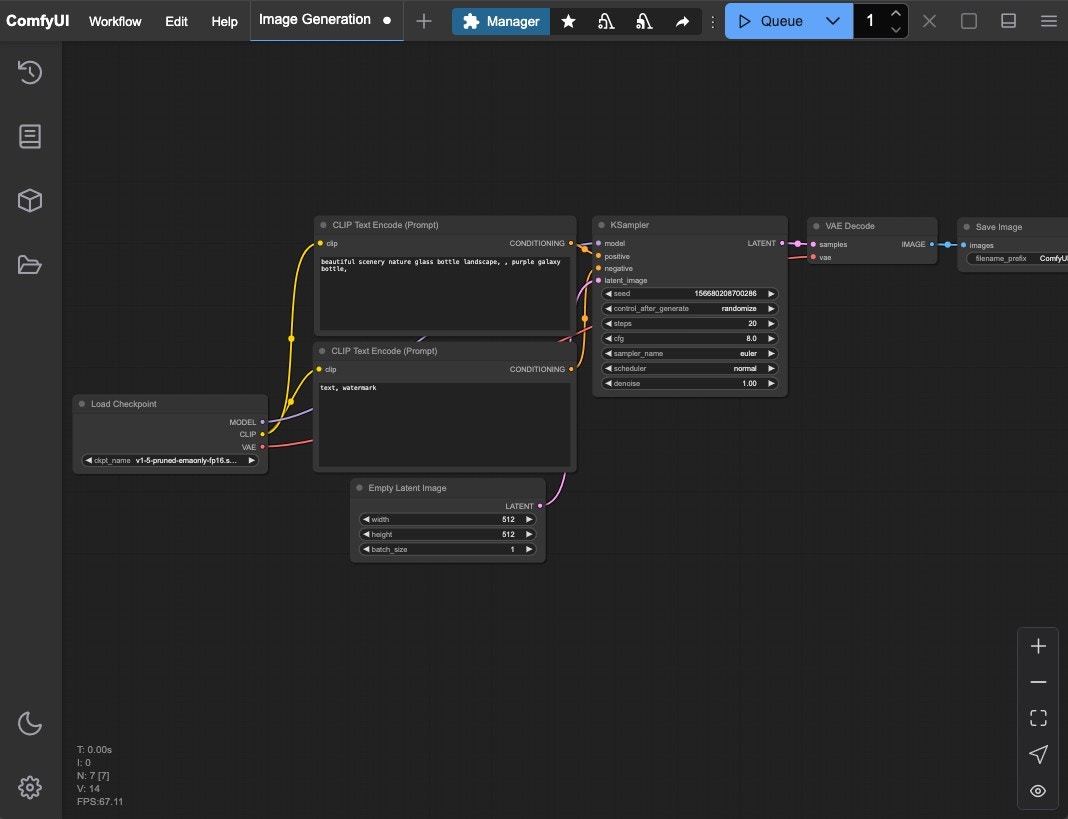

With no Node selected, press . to fit the whole Workflow on screen.

Run the Workflow

Running the Workflow queues it, and ComfyUI generates the image.
  • Click Run, or press Ctrl+Enter (Cmd+Enter on macOS).

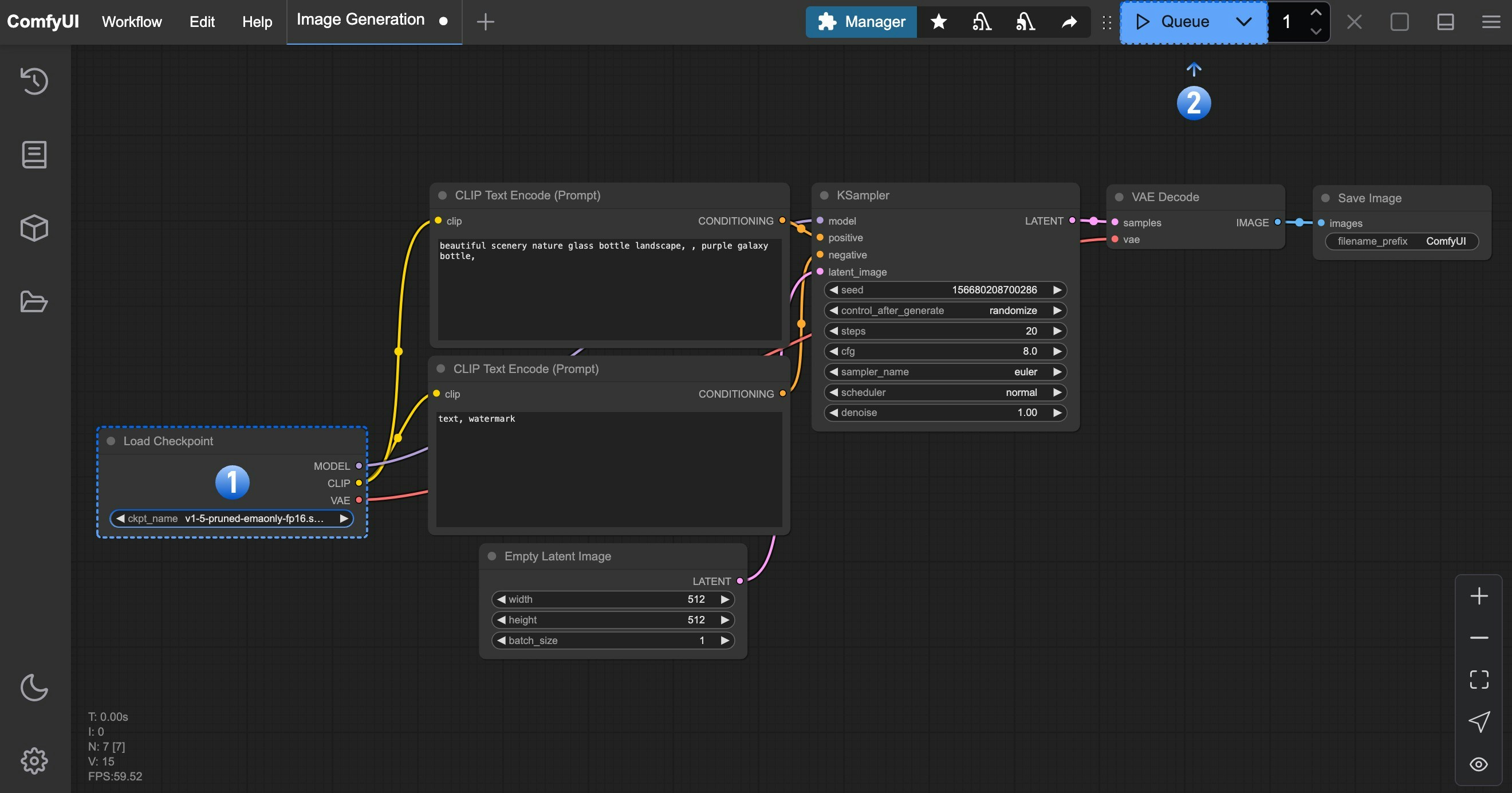

ComfyUI text-to-image Workflow with the Load Checkpoint Node and the Run button highlighted If ComfyUI shows Required input missing, see Required input missing.

Find the generated image

When the run finishes, the image appears in the Save Image Node. To open it from the Left sidebar:
  • Click Assets, and then select the Generated tab.

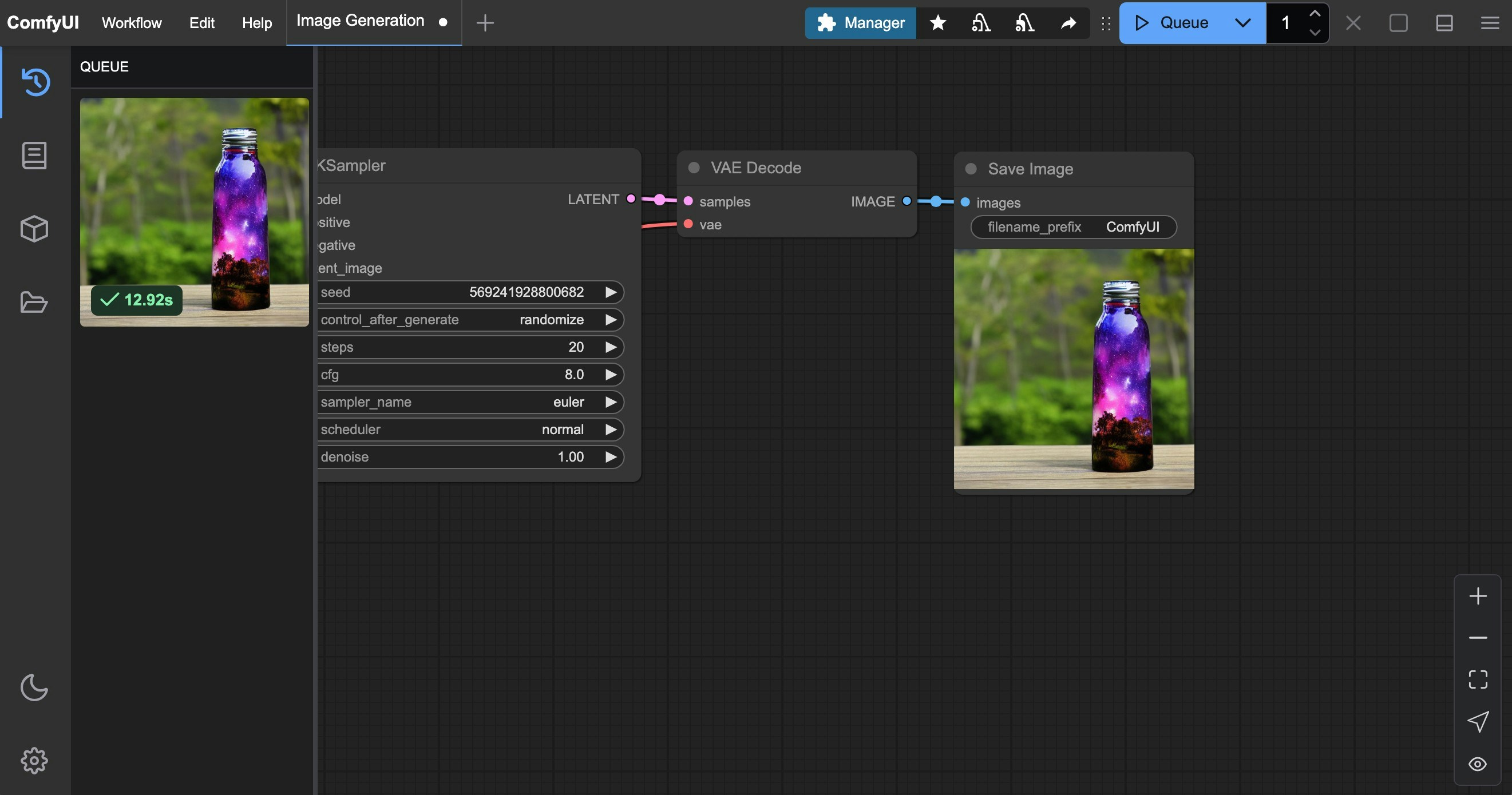

Generated galaxy bottle image shown in the Save Image Node and in the Assets panel Save Image also writes the image to the output folder as a PNG file named ComfyUI_00001_.png. The number goes up for each new image. In ComfyUI Portable and manual installs, the output folder is ComfyUI/output.

Load a Workflow from an image

By default, every PNG file that Save Image writes contains the Workflow that made it. Load the example image below to compare its Workflow with the one you built.
  1. Save this image to your computer: ComfyUI text-to-image example image of a purple galaxy bottle, with the Workflow saved inside the file
  2. Drag the PNG file onto the Canvas. You can also click the ComfyUI logo (Menu) in the Left sidebar, select File > Open, and select the file.
The Workflow from the image opens. If a Load Image Node appears instead, the file you dropped has no Workflow saved in it.

Fix a missing model

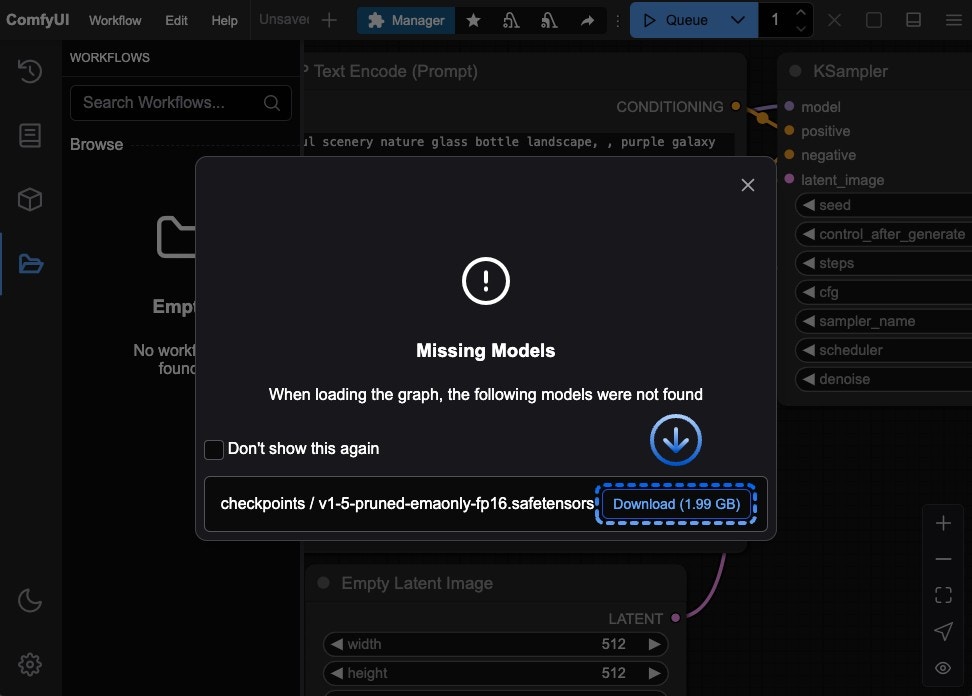

When you load a Workflow whose model file isn’t in your model folders, ComfyUI shows a notice that names the missing model, such as v1-5-pruned-emaonly-fp16.safetensors is missing.
  1. Click View details. The Right side panel opens on the Issues tab and lists the file under Missing Models. The folder the file belongs in, such as checkpoints, appears under the file name.
  2. If the row has a Download button, click it.
    • Comfy Desktop: Comfy Desktop downloads the file into the checkpoints folder of your Downloads models folder.
    • ComfyUI Portable and manual installs: Your browser downloads the file. Move it into the checkpoints folder, as in Put the model in the checkpoints folder.
  3. If the row has no Download button, get the file yourself:
    1. Click the link icon next to the file name. The link icon copies the download link (Copy URL), or the file name when the Workflow has no link (Copy model name).
    2. Download the file. For this tutorial’s model, follow Download the model.
    3. Move the file into the folder named under the file name, such as checkpoints.
  4. Click Refresh (the circular arrow) in the Missing Models header, or press R, so ComfyUI checks the model folders again.
A missing model row has no Download button when any of these is true:
  • The Workflow has no download link for the model. The example image in Load a Workflow from an image is one of these Workflows.
  • The download link isn’t a Hugging Face or Civitai link.
  • The file name doesn’t end in .safetensors, .sft, .ckpt, .pth, or .pt.
  • The Workflow doesn’t say which model folder the file belongs in.
Comfy Cloud never shows Download for a missing model. It shows Import instead, so you can import the model into Comfy Cloud. Models used by Nodes that don’t support imported models are listed under Import Not Supported.

Troubleshoot

Use these entries when a run fails or the model file doesn’t load.

Required input missing

An input has no link. The message names the Node and the input, such as KSampler is missing a required input: latent_image. Connect the input named in the message, and run the Workflow again.

The model isn’t in the checkpoint list

The file isn’t in a checkpoints folder that ComfyUI reads. Move it there, as in Put the model in the checkpoints folder, and then press R.
