- Start-End Frame Control: Supports inputting start and end frame images to generate intermediate transition videos, enhancing video coherence and creative freedom
- High-Quality Video Generation: Based on the Wan2.2 architecture, outputs film-level quality videos
- Multi-Resolution Support: Supports generating videos at 512×512, 768×768, 1024×1024 and other resolutions to suit different scenarios
- 14B High-Performance Version: Model size exceeds 32GB, with better results but requires high VRAM
- 🤗Wan2.2-Fun-Inp-14B
- Code repository: VideoX-Fun
ComfyOrg Wan2.2 Fun InP & Control Youtube Live Stream Replay
Wan2.2 Fun Inp Start-End Frame Video Generation Workflow Example
Make sure your ComfyUI is updated.Workflows in this guide can be found in the Workflow Templates.
If you can’t find them in the template, your ComfyUI may be outdated.(Desktop version’s update will delay sometime)If nodes are missing when loading a workflow, possible reasons:
- You are not using the latest ComfyUI version(Nightly version)
- You are using Stable or Desktop version (Latest changes may not be included)
- Some nodes failed to import at startup
- A version using Wan2.2-Lightning 4-step LoRA from lightx2v for accelerated video generation
- A fp8_scaled version without acceleration LoRA
Model Type | VRAM Usage | First Generation Time | Second Generation Time |
---|---|---|---|
fp8_scaled | 83% | ≈ 524s | ≈ 520s |
fp8_scaled + 4-step LoRA | 89% | ≈ 138s | ≈ 79s |
1. Download Workflow File
Please update your ComfyUI to the latest version, and find “Wan2.2 Fun Inp” under the menuWorkflow
-> Browse Templates
-> Video
to load the workflow.
Or, after updating ComfyUI to the latest version, download the workflow below and drag it into ComfyUI to load.
Download JSON Workflow
Use the following materials as the start and end frames

2. Models
Diffusion Model- wan2.2_fun_inpaint_high_noise_14B_fp8_scaled.safetensors
- wan2.2_fun_inpaint_low_noise_14B_fp8_scaled.safetensors
- wan2.2_i2v_lightx2v_4steps_lora_v1_high_noise.safetensors
- wan2.2_i2v_lightx2v_4steps_lora_v1_low_noise.safetensors

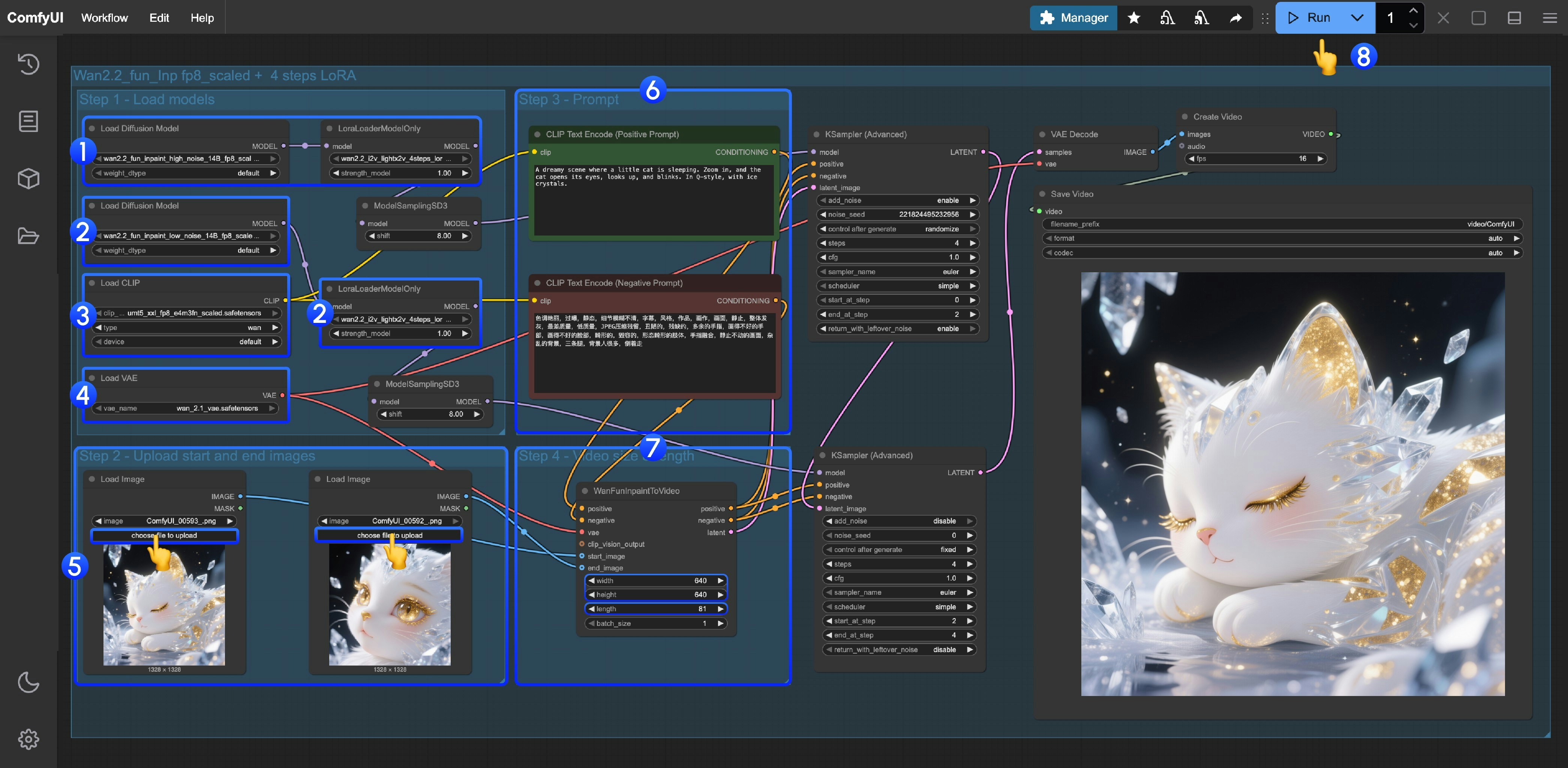

3. Workflow Guide

This workflow uses LoRA. Please make sure the corresponding Diffusion model and LoRA are matched.
- High noise model and LoRA loading
- Ensure the
Load Diffusion Model
node loads thewan2.2_fun_inpaint_high_noise_14B_fp8_scaled.safetensors
model - Ensure the
LoraLoaderModelOnly
node loads thewan2.2_i2v_lightx2v_4steps_lora_v1_high_noise.safetensors
- Ensure the
- Low noise model and LoRA loading
- Ensure the
Load Diffusion Model
node loads thewan2.2_fun_inpaint_low_noise_14B_fp8_scaled.safetensors
model - Ensure the
LoraLoaderModelOnly
node loads thewan2.2_i2v_lightx2v_4steps_lora_v1_low_noise.safetensors
- Ensure the
- Ensure the
Load CLIP
node loads theumt5_xxl_fp8_e4m3fn_scaled.safetensors
model - Ensure the
Load VAE
node loads thewan_2.1_vae.safetensors
model - Upload the start and end frame images as materials
- Enter your prompt in the Prompt group
- Adjust the size and video length in the
WanFunInpaintToVideo
node- Adjust the
width
andheight
parameters. The default is640
. We set a smaller size, but you can modify it as needed. - Adjust the
length
, which is the total number of frames. The current workflow fps is 16. For example, if you want to generate a 5-second video, you should set it to 5*16 = 80.
- Adjust the
- Click the
Run
button, or use the shortcutCtrl(cmd) + Enter
to execute video generation
